| TOFD Probe 사양 |
| TOFD TRANSDUCERS & WEDGES |
De-mountable Piezocomposite TOFD Transducers– only for use with WTOF Wedges

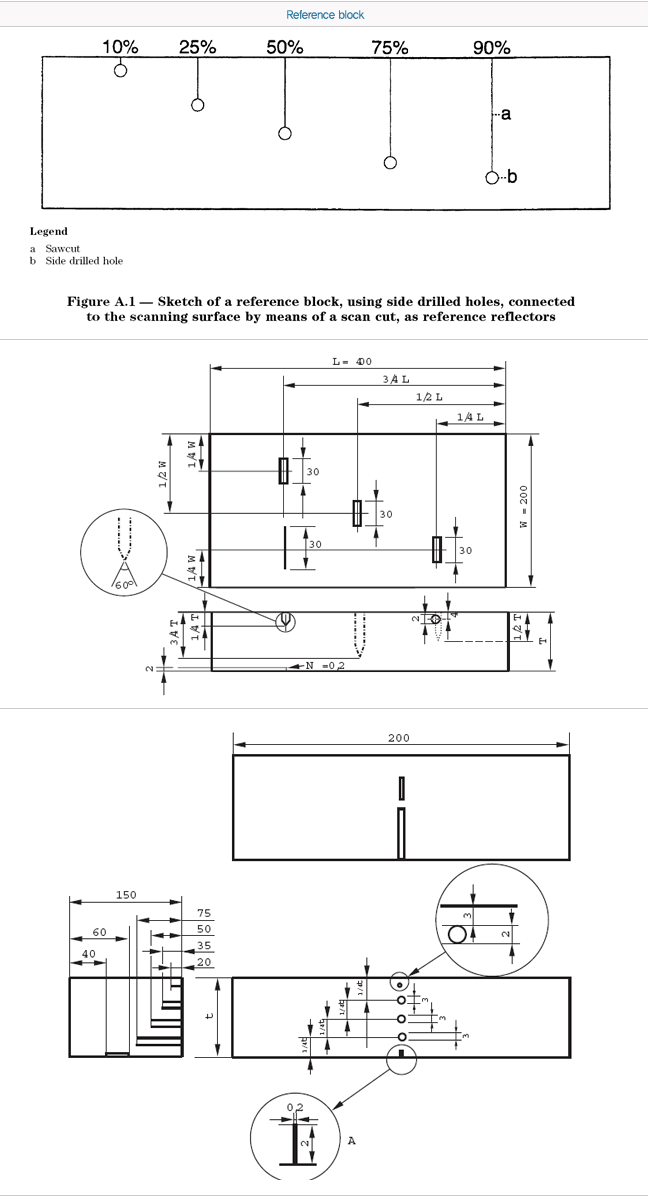

TOFD 검사 - 후판 용접부 (특히 용접부에 대한 RT 검사 대체용으로 적용) |
High damped transducers in a threaded housing for use with WTOF wedges
  |
| Part Number |
|
Frequency MHz |
|
Crystal Diameter |
|
Case Size |
|
|
|
|
|
|
|
| CDTOF 2/04 |
|
2 |
|
12mm |
|
M20 |
|
|
|
|
|
|
|
| CDTOF 5/01 |
|
5 |
|
3.1mm |
|
M12 |
|
|
|
|
|
|
|
| CDTOF 5/02 |
|
5 |
|
6.3mm |
|
M12 |
|
|
|
|
|
|
|
| CDTOF 5/04 |
|
5 |
|
12mm |
|
M20 |
|
|
|
|
|
|
|
| CDTOF7.5/01 |
|
7.5 |
|
3.1mm |
|
M12 |
|
|
|
|
|
|
|
| CDTOF 7.5/02 |
|
7.5 |
|
6.3mm |
|
M12 |
|
|
|
|
|
|
|
| CDTOF 10/01 |
|
10 |
|
3.1mm |
|
M12 |
|
|
|
|
|
|
|
| CDTOF 10/02 |
|
10 |
|
6.3mm |
|
M12 |
|
|
|
|
|
|
|
| CDTOF 15/01 |
|
15 |
|
3.1mm |
|
M12 |
|
| * Probes fitted with 00 Lemo coaxial sockets |
| De-mountable Irrigated TOFD Wedges available in Plastic, S/Steel or Brass |
- only for use with DTOF & CDTOF Transducers
   |
| Part number |
|
Compression
Beam Angle |
|
Thread Size |
|
|
|
|
|
| WTOFSSI 12/45 |
|
45° |
|
M12 |
|
|
|
|
|
| WTOFSSI 12/60 |
|
60° |
|
M12 |
|
|
|
|
|
| WTOFSSI 12/70 |
|
70° |
|
M12 |
|
|
|
|
|
| WTOFSSI 20/45 |
|
45° |
|
M20 |
|
|
|
|
|
| WTOFSSI 20/60 |
|
60° |
|
M20 |
|
|
|
|
|
| WTOFSSI 20/70 |
|
70° |
|
M20 |
|
|
|
|
|
| WTOFSSI 30/45 |
|
45° |
|
M30 |
|
|
|
|
|
| WTOFSSI 30/60 |
|
60° |
|
M30 |
|
|
|
|
|
| WTOFSSI 30/70 |
|
70° |
|
M30 |
|
| M30 thread Wedges are 40mm wide, all others 30mm wide |
High Temperature(200℃) TOFD Wedges – only for use with DTOF & CDTOF Transducers
 |
| Part number |
|
Compression
Beam Angle |
|
Thread Size |
|
|
|
|
|
| WTOFSSI HT 12/45 |
|
45° |
|
M12 |
|
|
|
|
|
| WTOFSSI HT 12/60 |
|
60° |
|
M12 |
|
|
|
|
|
| WTOFSSI HT 12/70 |
|
70° |
|
M12 |
|
|
|
|
|
| WTOFSSI HT 20/45 |
|
45° |
|
M20 |
|
|
|
|
|
| WTOFSSI HT 20/60 |
|
60° |
|
M20 |
|
|
|
|
|
| WTOFSSI HT 20/70 |
|
70° |
|
M20 |
|
