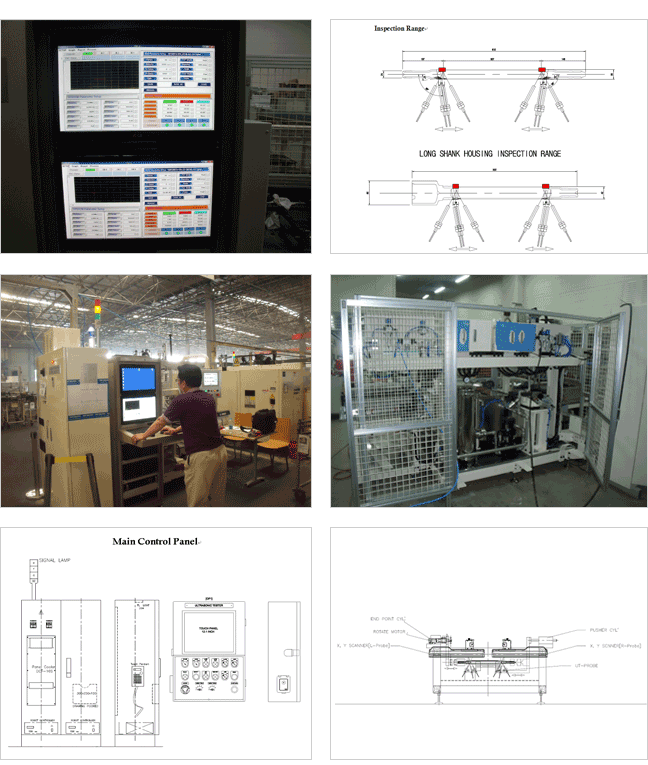

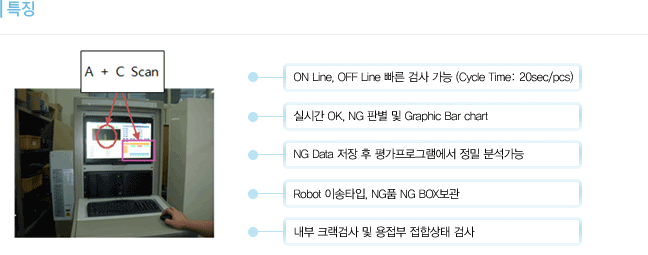

| 사 양 |
| Pulse Voltage |
|
-40V to -300V, 256 steps. Higher voltages are available upon request. |
| Pulse Width |
|
50 ns to 484ns, 256 steps |
| Damping |
|
500 Ohms, or 50 Ohms |
| Internal Trigger |
|
1 Hz to 5000 Hz in 10 Hz increments when internal trigger is selected. |
| Receiver Gain |
|
0 dB to 80 dB in 0.1dB increments, or 0 dB to 40 dB fixed and 0 dB to 40 dB DAC. |
| DC Offset |
|
-2.5V to 2.5V in 5mV increments |
| Low Pass Filter |
|
All, 48MHz, 28MHz, 18MHz, 8.8MHz, 7.5MHz, 6.7MHz, or 5.9MHz |
| High Pass Filter |
|
4.8MHz, 1.8MHz, 0.8MHz, or 0.6MHz |
| Waveform |
|
Full rectify, + half rectify, - half rectify, or RF |
| Trigger Source |
|
external, internal, or software |
| Transducer Mode |
|
Single (pulse/echo) or dual (through transmission) |
| Dimensions |
|
12.5"x4.25" not including BNC and PCI edge connectors |
| Connectors |
|
BNC connectors: 4 Pulse out, 4 receiver in,
1 signal out, and 1 external trigger in. |
| Add-on Options |
|
BNC trigger-sync output connector |
| Immersion Probe |
|
Frequency: 10Mhz, Element Dia: 0.125” |
| Power input |
|
Three Phase 380V ±5% 60/50Hz ±0.5% 10KVA |
| Control Voltage |
|
AC110V/220V & DC24V |
| AIR SUPPLY |
|
4~ 6㎏/㎠ |
| WATER SUPPLY |
|
15A 100ℓ/Day |
| |
|
Logarithmic amplifier |
| |
|
Up to 4 encoder counters and connectors |
| |
|
High pulse voltages |
| |
|
Distance amplitude correction (DAC) |
| |
|
Software development kits |
