Typical Applications
- Pipes & Boiler tubes
- Pressure vessels
- High temperature applications
- Storage tanks
- Ship hulls
- Steel beams
Field Upgradable

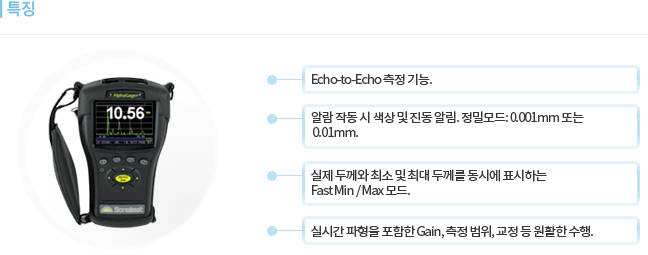

Upgradable in the field, the AlphaGage+ is a flexible solution as it can be fully loaded from the start or upgraded anytime later by easily activating its valuable software options when required

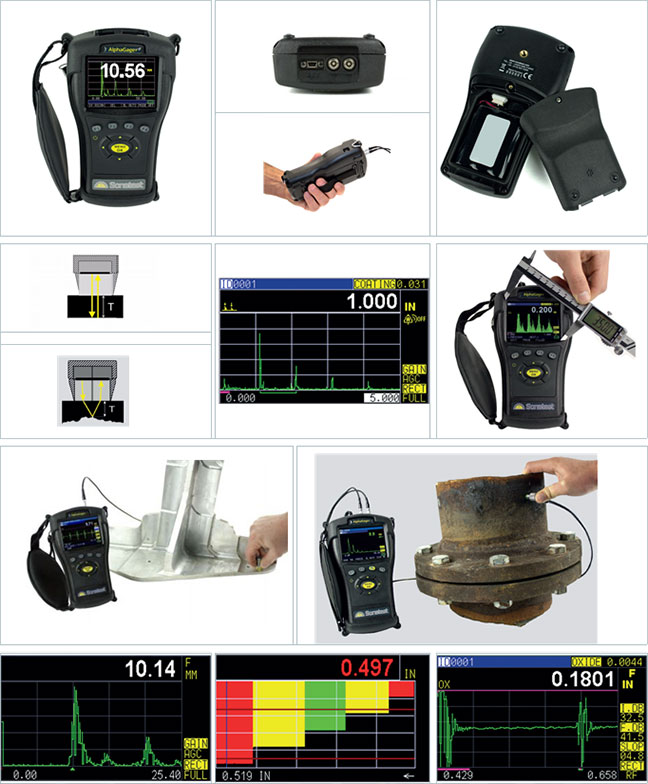

True Thickness (under coating)
When a metal surface is protected by anti-corrosion paint or coating, true wall thickness measurement using Echo-to-Echo function is a key feature and available on all AlphaGage+ models
Data Logger (B-Scan)
With internal SD card memory of up to 32GB, store without limit thickness readings with ID location for corrosion mapping or profile assessment and send readings to Microsoft ExcelTM
(DataXLS) for further asset maintenance evaluation.
Live Waveform (A-Scan)
Display live A-scan for echo verification and real time control of acoustic range, rectification, gain and blanks or combine the A-Scan with B-Scan view for even more detailed analysis
Oxide Scale (boiler tube)
Simultaneously display the boiler tube wall thickness as well as the internal oxide scale thickness at their velocities greatly improves the efficiency of investigation to extend tube life
AlphaGage+ P kit 기본 구성 :
- Echo-to-Echo functionalities
- 2 GB microSD card
- AC power adapter &USB cable
- Standard 3.7V Li-ion internally rechargeable battery
- Plastic carrying case
- One couplant bottle
- CD with manual
- Data XLS interface program to export saved readings to PC. (Microsoft Excel)
- NIST traceable calibration certificate
Software options and accessories included:
- Access to single element probe database.
- One DKL1025 transducer
(10 MHz, 0.25" diameter with Lemo to Microdot cable 6").
