| 도막 두께 측정기 | HOME > PRODUCTS > 기타 장비 > 도막 두께 측정기 | |

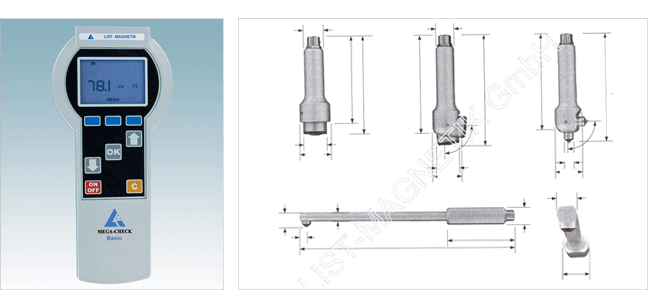

| MEGA-CHECK | ||
| 이 장비는 자기유도 방식과 와류 방식을 이용하여 제품을 파괴하지 않고 손쉽게 도막, 도장 두께를 측정할 수 있다. 우수한 정밀도 및 다양한 PROBE로 0-5000μm의 넓은 측정 범위 를 가지고 있다. | ||
 |
||
적용
사양
탐촉자 종류
첨부
 |
| 사 양 | ||||||
| Maker:List-Magnetik (독일) | ||||||
| Function | Basic | Profi | Master | |||
| Measurement of paint, varnish, plastics and galvanizing on iron and steel |
○ | ○ | ○ | |||
| Measurement of insulating coatings (paint, varnish, plastics, anodizing) on nonferrous metals |
○ | ○ | ○ | |||
| Measuring Range: | probe table | probe table | probe table | |||
| Resolution: 1 - 100 µm: 0.1 µm > 100 µm: 1 µm > 2000 µm: 0.01 mm |
||||||
| Accuracy: below 100 µm: ± 1 µm 100 - 1000 µm: ± 1 % 1000 - 2000 µm: ± 3 % above 2000 µm: ± 5 |
○ | ○ | ○ | |||
| Available Probes: | s. probe table | s. probe table | s. probe table | |||
| Power Supply: 3 x 1.5V AA Mignon, | ○ | ○ | ○ | |||
| One / Two-Point calibration | ○ | ○ | ○ | |||
| Automatic Switch Off: | ○ | ○ | ○ | |||
| Conversion µm . mils: | - 10.000 readings | - 10.000 readings | ||||
| Data Logger: | X | ○ | ○ | |||
| Batches: | X | 1 | max. 100 | |||
| Calibration memory: | X | 3 | 3 | |||
| Multilingual Menu | ○ | ○ | ○ | |||
| Statistics (MAX. MIN. MEAN. NO. STD.DEV | X | ○ | ○ | |||
| Display of stored readings and statistics | X | ○ | ○ | |||
| SCAN . Function to measure on rough surfaces: | X | X | ○ | |||
| Analog Duplex . Value indication: diagram with continuous measurement: |
X | X | ○ | |||
| Graphic . Display with backlit: | ○ | ○ | ○ | |||
| Radio . USB Interface: | - | ○ | ○ | |||
| Dimensions: | 198 x 92 x 35 mm | 198 x 92 x 35 mm | 198 x 92 x 35 mm | |||
| Weight incl. Batteries: | 265 g | 265 g | 265 g | |||
| 탐촉자의 종류 | ||||||||||||
| Model | Measuring princlpe |
Description | Measuring range |
Smalleat area |
Smalleat curvature radius |
|||||||
| convex | concave | |||||||||||
| PF-5 | magnetic | Standard-Probe springloaded guide (ferrous) |
0-5000 μm | Ø4 mm | 2 mm | 38 mm | ||||||
| PF-5S | magnetic | Standard Swinging Probe springloaded guide (ferrous) |
0-5000 μm | Ø4 mm | 2 mm | 38 mm | ||||||
| PFN52A | magnetic eddy current |
Dual Function Probe springloaded guide (ferrous+non ferrous) |
F 0-5000 μm N 0-2500 μm |
Ø6 mm | F 4 mm N 6 mm |
F 38mm N 38mm |
||||||
| PFN-52AT | magnetic eddy current |
Dual Function Swinging Probe, springloaded guide (ferrous+non ferrous) |
F 0-5000 μm N 0-2500 μm |
Ø6 mm | F 4 mm N 6 mm |
F 38mm N 38mm |
||||||
| PF-1S | magnetic | Special Swinging Probe for small objects, pringloaded guide (ferrous) |
0-1000 μm | Ø2 mm | 1 mm | 6 mm | ||||||
| F-1T | magnetic | Special-Probe to measure inside of pipes + slots (ferrous) |
0-3000 μm | Ø3 mm | 2 mm | 8 mm | ||||||
| Attachment | English | Korean | ||
| MEGA-CHECK 카탈로그 |  |
|
