| Dolphin G3™ |
| 튜브 사이즈 |
|
½" up to 4" (12.7mm –101.6mm) inner diameter |
| 튜브 구성 |
|
U-bends, finned tubes, twisted tubes, spiral wound and flexible tubes를 포함한 모든 구성 |
| 튜브 재료 |
|
철 및 비철, graphit, 플라스틱을 포함한 모든 재료 |
| 최대 길이 |
|
Up to 80' typical |
| 결함 검출 |
|
0.5"-2.5" (12.7mm –63.5mm) Tubes |
|
Holes:minimum diameter 0.039" (1mm) 시스템은 많은 경우에 더 작은 구멍을 검출 할 수 있다
Blockages:minimum of 5% of cross section
Erosion:minimum 5% of wall thickness
Pitting:minimum 20% of wall thickness 3"-4" (76.2mm –101.6mm) Tubes
Holes:minimum diameter 0.118" (3mm) 시스템은 많은 경우에 더 작은 구멍을 검출 할 수있다
Blockages:minimum of 5% of cross section
Erosion:minimum 5% of wall thickness
Pitting:-- minimum 50% of wall thickness |
| 검사 속도 |
|
튜브 크기, 길이 그리고 구성에 따라 튜브 당 10초 이상. |
| 하드웨어 |
|

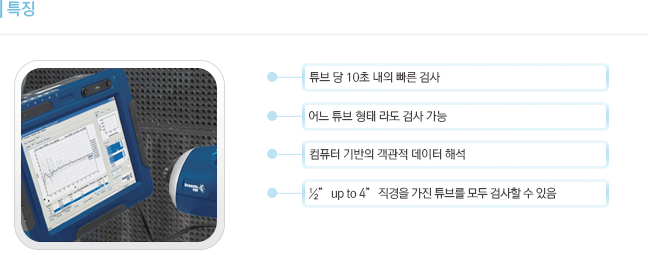

Compact handheld device:
Non-invasive probe assembly including a transducer, microphone, controls, LCD screen and
adaptors to fit tubes of any internal diameter up to 4".
Customized extensions (optional) for easy access to tube openings in challenging situations.
Main measurement and control unit (MCU):
External computer connected to handheld device. Utilized for inspection setup,
probe status monitoring, test data recording and analysis via AcousticEye software. |
| 소프트웨어 |
|
Patented Acoustic Pulse Reflectometry (APR) technology featuring specialized,
proprietary algorithms for NDT inspection. |
| 보고 |
|
Customizable, graphical on-line reports. Available output in PDF or HTML format. |
| 외형적 특징 |
|
Compact, rugged and lightweight design.
Total box weight:18Kg
Box dimensions:56 x 45.5 x 26.5 cm |
| 전원 입력 |
|
Dual voltage system (110V/220V) |
| 운영 온도 범위 |
|
14° to 122° F (-10° to +50° C) |
| 인증 |
|
CE Declaration of Conformity:Safety Certificate IEC 61010; EMC Test Certificate;
Company Quality System certified to ISO 9001:2008 |
