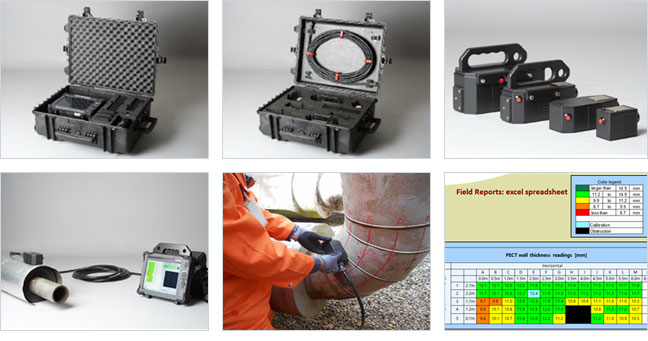

| Standard set |

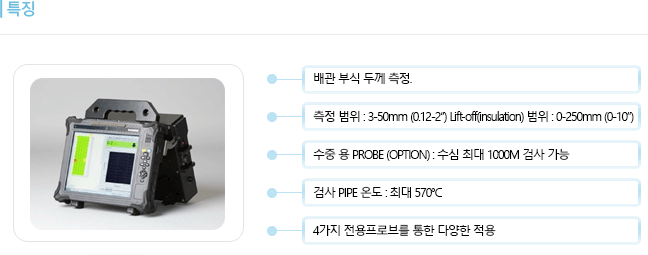

- One PECT instrument : data acquisition unit permanently connected to a
TA10 Durabook data acquisition computer
- Four standard probes
- Two signal cable, each 8m long,
- Two batteries for PECT instrument,
- Three batteries for data acquisition computer,
- Two battery changers and adapters
|
| Optional items |
- 40m extension leads
- Splash zone probes, 3m water depth, with 50m umbilical (can be extended to150m)
- Underwater probes, 30m depth rating
- Underwater probe, depth rating to1000m.
|
| Data acquisition
computer |
DARABOOKTA10 10.4"Touch screen with LED backlight
Sunlight Readable Display; Ambient Light Sensor; screen protector. Navigation key pad and quick keys
8GB memory ,250GB SSD |
| Standard probes |
Four standard probes, Nominal lift-off ranges:0-25mm;25mm-
75mm; 40mm-125mm and 75mm-250mm.
Probe selection is automated at inspection set-up. |
| Batteries |
Operation requires a first set of two batteries fordata acquisition computer and
one heavy-duty battery for pulse generation.
Typical battery life: 8hours
A standard set includes a second set of batteries which can be recharged indoors with two external charges.
Batteries are hot-swappable |
| Software |
Data capture software enables quick generation of field reports
PC-based software for offline data verification and reporting |
| Dimensions PECT
instrument |
30cm x15cm x22cm |
| Weight instrument |
7.8kg including batteries and data acquisition computer
The instrument is provided with 2 hoisting lugs |
